Description
TP-link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall
TP-link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point, EAP235-Wall is a networking device delivering fast and stable wired and wireless connectivity. Manufactured by TP-link, it offers dependable performance and durable build quality.
- Model No: EAP-235-WALL
- Type of Product: Access Point
- Wireless Standards: IEEE 802.11a/b/g/n/ac
- Operating Humidity: 10-90% Non-Condensing
- Dimensions (cm): 143 × 86 × 20 mm
Specifications
| Model No | EAP-235-WALL |
| Type of Product | Access Point |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Operating Humidity | 10-90% Non-Condensing |
| Dimensions (cm) | 143 × 86 × 20 mm |
| Transmission Power | ≤21 dBm (2.4 GHz)||≤21 dBm (5 GHz) |
| Power Supply | 802.3af/802.3at PoE |
| Operating Temperature | 0–40℃ |
| Storage Temperature | -40–70℃ |
| Frequency | 2.4-5 GHz |
| Antenna | 2.4 GHz: 2× 4 dBi||5 GHz: 2× 4 dBi |

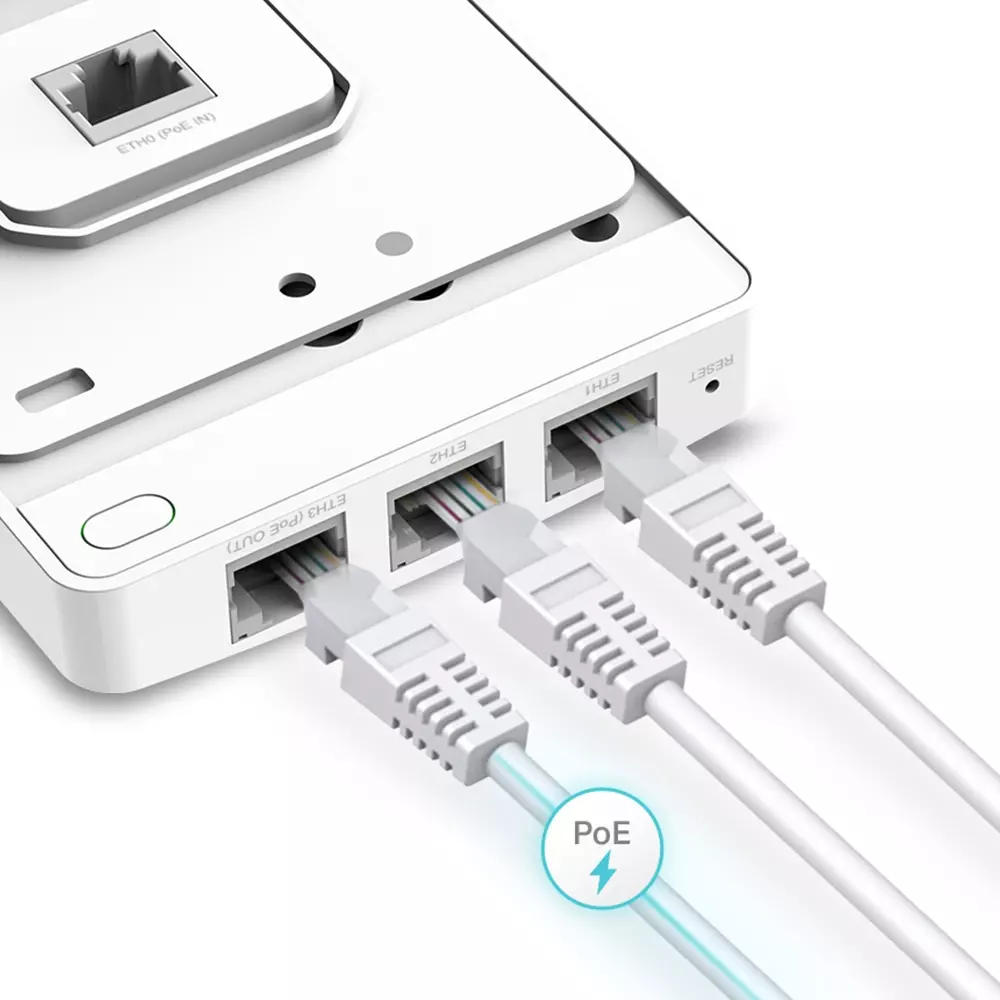

| Interface | Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE||Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port |
| Certification | FCC, RoHS |
| Dimensions (DxWxH) | 143x86x20 mm |
| Signal Rate | 5 GHz: Up to 867 Mbps||2.4 GHz: Up to 300 Mbps |
| Power Consumption | 9.8 Watts||24.4 Watts with 13 W PoE output |
| Mount Type | Wall Plate Mounting |
| Storage Humidity | 5–90% RH Non-Condensing |
