Description
Tenda Wireless Outdoor Access Point (CPE) TE-O3
Tenda Wireless Outdoor Access Point (CPE) TE-O3 is a networking device delivering fast and stable wired and wireless connectivity. Manufactured by Tenda, it offers dependable performance and durable build quality.
- Model No: TE-O3
- Type of Product: Access Point
- Dimension: 270×94.86×67.5 mm
- Country of Origin: India
- Operating Humidity: 10%~90% non-condensing
Specifications
| Model No | TE-O3 |
| Type of Product | Access Point |
| Dimension | 270×94.86×67.5 mm |
| Country of Origin | India |
| Operating Humidity | 10%~90% non-condensing |
| Power Supply | PoE Injector (12v 1A,Cat5e or Better Ethernet Cable Length > 60 meters) |
| Current | 1 A |

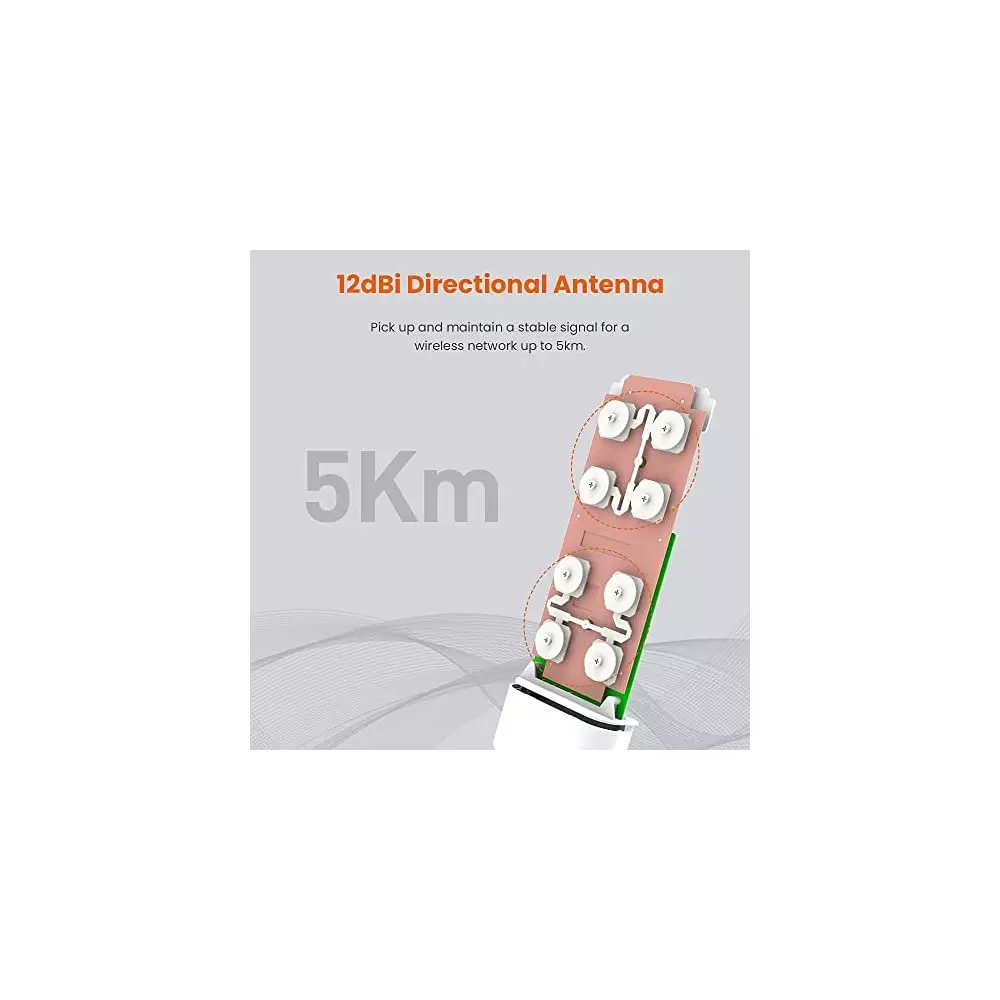

| Other Features | Enable/Disable Wireless Radio,SSID Hidden,Wireless Client isolation,Sensitivity Threshold,WMM Capable,APSD Capable,Wireless Access Control,Wireless Client list.● 2.4G 150Mbps .● IP64 waterproof enclosure .● 12dBi directional dual polarized antenna .● AP, Station, WISP etc operating mode supported .● Up to 60 meters of flexible deployment with included PoE Injector .5km+ Data Transmission:O3 is designed for outdoor long distance wireless data transmission. Adopting of 800mW external power amplifier and 12dBi directional antenna to achieve 5km+ transmission range.Professional Outdoor Design:Equipped with IP64 waterproof enclouse and 6kV lightning protection capability, O3 can work in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment.Multiple Application Scenarios:1.Long-Distance Wireless Connection.-One work as AP mode and another work as Station mode to create a long distance wireless connection for video surveillance and data transmission.2.WISP(Client+Router) Mode-Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.3.P2MP Link-Link multi AP in a network, all the associated client can communicate with each other.Easy to Manage:O3 also comes with a centralized management software that helps users easily manage all the devices in their network from a single computer–CPE Assistant.CPU Processor:Broadcom 300MHz.Antenna Beamwidth:Horizontal: 60° Vertical: 30°.Waterproof Level:IP64.Remote Web access:support,Schedule Reboot:support,Page Timeout:support.Dyndns:noip, dyndns.org.Network Diagnoses:Ping, Traceroute, Signal Scan.Maximum Transmit Power:800mw(29dbm).Reception Sensitivity:MCS0: -88dbm,MCS7: -72dbm.Maximum Concurrent Clients:15.Maximum Power Consumption:6W.Lightning-proof:4KV.Transmit Power:Adjustable power by 1dBm.VPN Pass-through:PPTP,L2TP.Management Tool:Time&Date Setting,System Log,Firmware update,Backup/Restore Configuration,Username Managerment.Default Settings:IP Address: 192.168.2.1,Login Username:admin |
| Product Title | Wireless Outdoor Access Point (CPE) |
| Operating Temperature | -20℃ ~ 55 |
| Storage Temperature | -40℃ ~ 70℃ |
| Frequency | 2.4 GHz |
| Interface | 1*FE PoE/WAN/LAN port,1*FE LAN Port,Grounding Terminal,1*RST Button. |
| Certification | FCC/CE/RoHS |
| Standard & Protocol | IEEE 802.11n/g/b |
| Encryption | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Wireless Speed | 150 Mbps |
| Other Security Features | DHCP Server,Clients list |
| Number of WAN ports | 1 |
| Number of LAN ports | 1 |
| Network Standard | IEEE 802.11n/g/b |
| Output Power Supply | 12V DC |
| Product Sub Type | Wireless Outdoor Access Point (CPE) |
| LED Indicator | PWR,Bridge,LAN,WAN/LAN |
| LED | PWR,Bridge,LAN,WAN/LAN |
| Dimensions (DxWxH) | 270×94.86×67.5 mm |
| Operation Mode | AP/Station/Universal Repeater/Repeater/P2MP/WISP/Router |
| Antenna Type | 12dbi Directional Antenna |
| In the Box | O3Power Adapter,PoE Injector,Ethernet cable,Quick Installation Guide. |
